Indoor Unit

AE090JNYDEH/EU

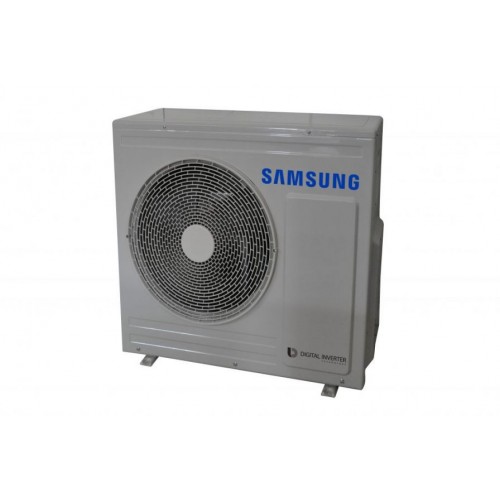

Outdoor Unit

AE040JXEDEH/EU

Performance (A7 / W35)

Nominal heating capacity (min/std/max) kW

1.667 / 4.40 / 4.00

Nominal cooling capacity (min/std/max) kW

1.625 / 5.00 / 5.00

Nominal heating power input (min/std/max) kW

0.348 / 0.86 / 0.86

Nominal cooling power input (min/std/max) kW

0.438 / 1.26 / 1.26

Nominal heating input current (min/std/max) A

1.6 / 4.1 / 4.1

Nominal cooling input current (min/std/max) A

2.0 / 5.7 / 5.7

COP (Nominal heating)

5.1

EER (Nominal heating)

3.97

SCOP(35°C)

4.44

ESEER

5.37

Performance (A2/W35)

Heating capacity W

3400

COP

3.52

Performance (A-7 / W35)

Heating capacity W

3,750

COP

2.62

Field Wiring

MCA A

20

MFA A

25

Water Connections

Water flow rate (heating / cooling) LPM

13/15

Water pressure (max) bar

3

Water pipe inlet Φ inch

BSPP male 1 1/4"

Water pipe outlet Φ inch

BSPP male 1 1/4"

Leaving water temp heating °C

25~55

Leaving Water temp cooling °C

5~25

Refrigerant Connections

Liquid pipe Φ mm / inch

6.35 / 1/4"

gas pipe Φ mm / inch

15.88 / 5/8"

max length m

30

max height m

20

chargeless length m

15

Operating Temp Range

Heating (A2W) °C

-25~35

Cooling (A2W) °C

10~46

DHW (A2W) °C

-25~43

Indoor Unit

AE090JNYDEH/EU

Power supply Φ,#,V,Hz

220~240V, 50Hz, 1Φ

Water pump type

Centrifurugal (UPM3 25-7.5)

Water pump motor input W

60

Number of water pumps

1

Flow switch

Magnetic, Decreasing

min flow rates LPM

7 ± 1.5

Electric heater W

4,000

expansion vessel l

8

pressure relief valve bar

2.9

air purge valve Φ, inch

BSPP male 3/8"

service valve Φ, inch

BSPP male 1 1/4"

sound pressure heating dB(A)

26

sound pressure cooling dB(A)

26

sound power heating dB(A)

40

Net weight kg

45

shipping weight

55

net dimensions ( W x H x D ) mm

510 x 850 x 315

shipping dimensions ( W x H x D )

564 x 1024 x 426

Back up boiler

230VAC 0.5A(DO)

room thermostat

230VAC 10mA(DI)

solar pump

230VAC 10mA(DI)

valves, 2 or 3 way

230VAC 0.5A(DI)

Outdoor Unit

AE040JXEDEH/EU

Power supply V, Hz, Φ

220~240V, 50Hz, 1Φ

Compressor type

BLDC twin rotary

Compressor model

UG4TH8200FE4SG

Compressor oil type

POE

Condenser size

2RX28S

Motor Type

SIC-67FV-F135-2

Motor Quantity

1

Motor Code

DB31-00492A

Fan Air flow rate CMM

40

Number of fans

1

4-way valve

SHF-7H-34U

base heater power input W

150

sound pressure heating dB(A)

46

sound pressure cooling dB(A)

46

sound power heating dB(A)

61

sound power cooling dB(A)

63

net weight kg

48.5

shipping weight kg

51.5

net dimensions ( WxHxD) mm

880 x 638 x 310

Shipping dimensions ( WxHxD ) mm

1,023 x 725 x 413

Refrigerant type

R410A

Refrigerant control method

EEV

Refrigerant factory charging g

1,400
